Black Powdercoated
Rear Ramp

6' 4" X 10"
205/75D 14" Bias Ply
5 0n 4 1/2
Four Flat
Recessed D.O.T. Sealed Lights
2"
None
1200Lbs. Swivel Jack
168"
95"

31"
19.5"
76" X 122"
46" With Coupler
3500 Lbs.
900 Lbs.
2600 Lbs.
4 Leaf SW4B Spring
3500 Lb. Straight
50 Lbs Pressure 95 Foot Lbs Lug
2" X 3" X 11 Ga. Steel Tube
1 Year
Manufacturer
SPECIFICATIONS
OPTIONAL FEATURES
  • Recessed Lights
  • Swivel Jack
  • Tie Down Loops
  • 3500 Lb Axle
  • Greasable Spindles
  • Tailgate


Model Number: EA-10-14
10' ECHO ADVANTAGE TRAILER
Echo Trailers Sliding Header
   Owners Manuel     Privacy Policy     Tongue Weight        Articles       Trailer Safety       Dealer Place      Deadly Mistakes       Ultimate Graphics       Brochures
Spare tire link
Echo Trailers Reciver Hitch
Echo Trailers Undermount Box
Echo Trailers Gas Can Rack
Echo Two Inch Trailers Ratchet Straps

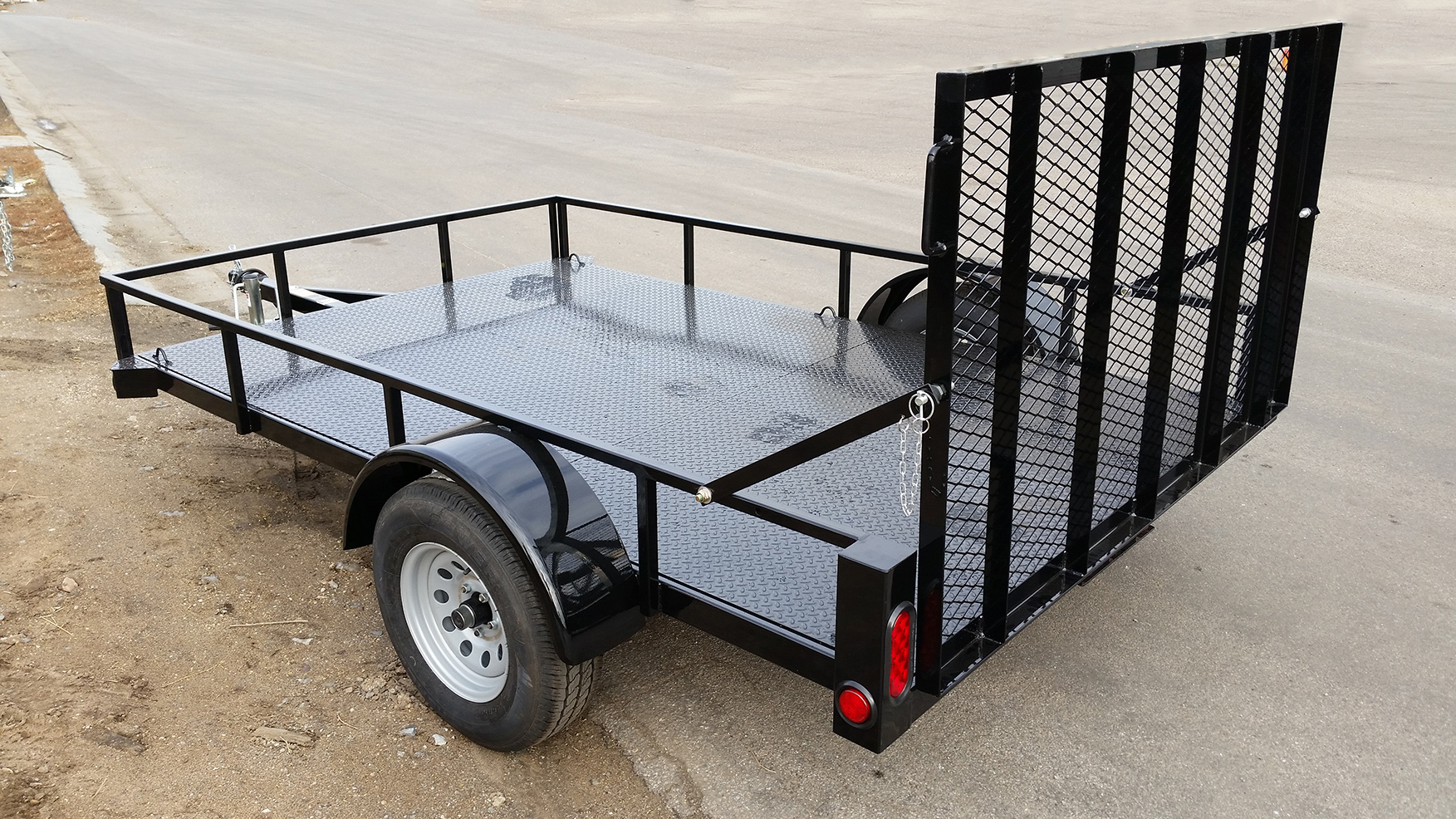

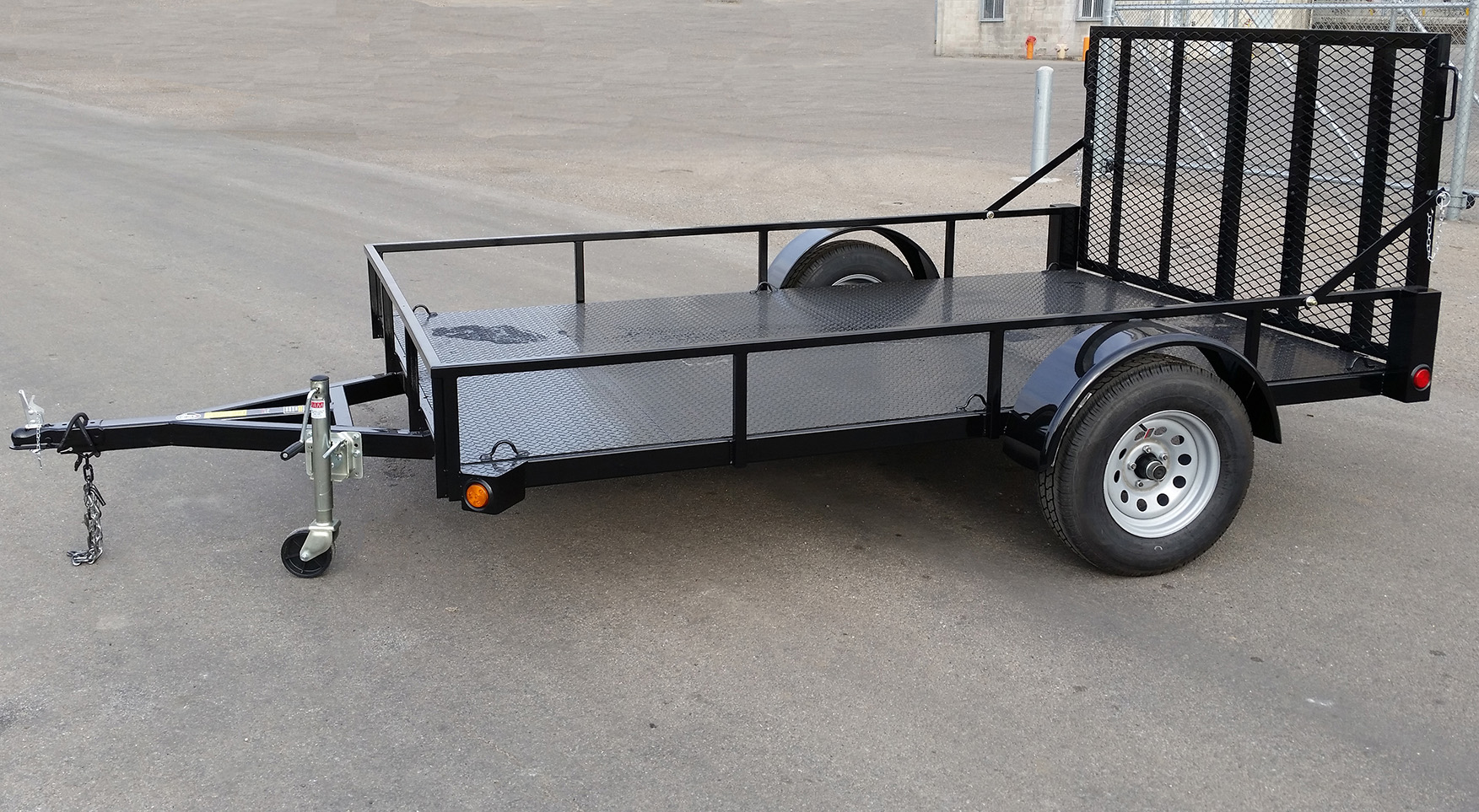

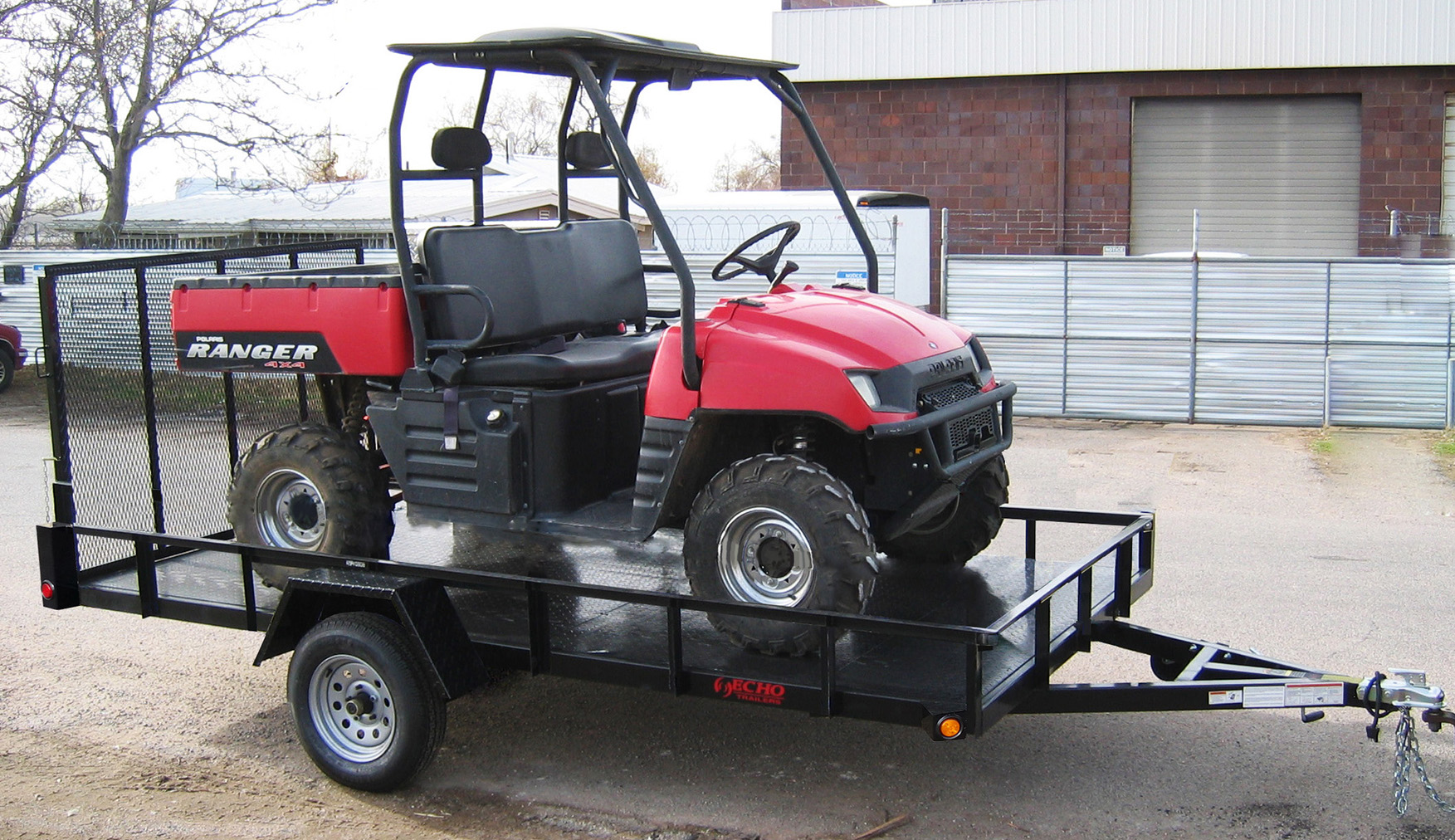

The 10' Advantage trailer is designed to carry one UTV/ side-by-side. It's just the right size for one 2 seat off road vehicle. It's light so it's easy to move around and easy to tow, and it comes with mounting points for retractable ratchet straps. The 10' Echo Advantage is equipped with recessed rubber mounted lights. Most trailers in this price range don't have recessed lights, which can be a real nuisance because they are hard to keep working, and often they get broken and have to be replaced.  An adjustable tail gate allows extra space between the gate and the side-by-side. Swivel jacks are the greatest. They are quick and easy to use and come with a wheel for moving the trailer around, even with an off-highway vehicle loaded. Greasable spindles allow you to service the bearings without disassembling the hub. If you have ever had to repack bearings you will really appreciate being able to grease the bearings with a grease gun. Powder coating is a great finish. It's eco-friendly and is much harder than any paint.  With this trailer you can do much more than go to your favorite riding spot. Echo Advantage trailers double as handy utility trailers for Saturday chores.




Wood Plank Or Solid Metal Deck
Echo Trailers 10' Advantage Schematic
171"
122"
46"
95"
76"
31"
19.5"
16.5"
17"
Echo Trailers XL Tool Box
Echo Trailers Compatable Machines

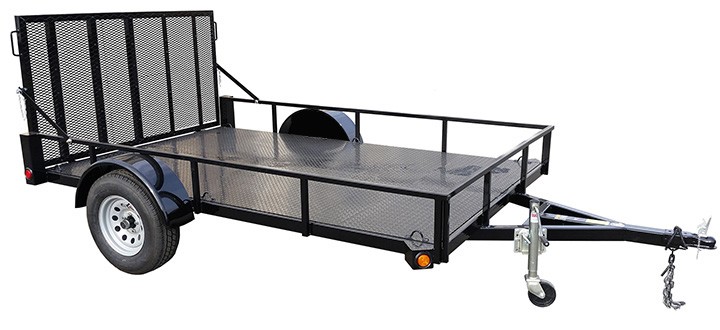

EA-13-14 Advantage Side By Side Trailer
* Shown With Metal Deck
Model Number: EA-10-14
