Black Powdercoated
Rear Ramp

205/75D 14" Bias Ply
5 0n 4 1/2
Four Flat
Recessed D.O.T. Sealed Lights
2"
None
204"
95"

31"
19.5"
76" X 158"
46" With Coupler
3300 Lbs.
525 Lbs.
2775 Lbs.
4 Leaf SW4B Spring
3500 Lb. Straight
Wood Plank Or Solid Metal Deck
1 Year
1 Year
SPECIFICATIONS
OPTIONAL FEATURES
  • Recessed Lights
  • Swivel Jack
  • Tie Down Loops
  • 3500 Lb Axle
  • Greasable Spindles
  • Tailgate
50 Lbs Pressure 95 Foot Lbs Lug
Model Number: EA-13-14
Echo Trailers Sliding Header
   Owners Manuel     Privacy Policy     Tongue Weight        Articles       Trailer Safety       Dealer Place      Deadly Mistakes       Ultimate Graphics       Brochures
13' ECHO ADVANTAGE TRAILER

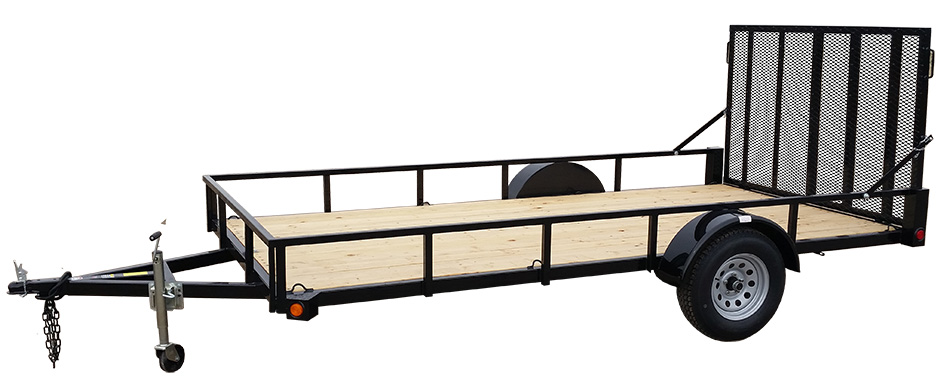

EA-13-14 Advantage Side By Side Trailer
6' 4" X 13'
13' Advantage Trailer Schematic
206"
156"
46"
95"
76"
31"
19.5"
16.5"
17"

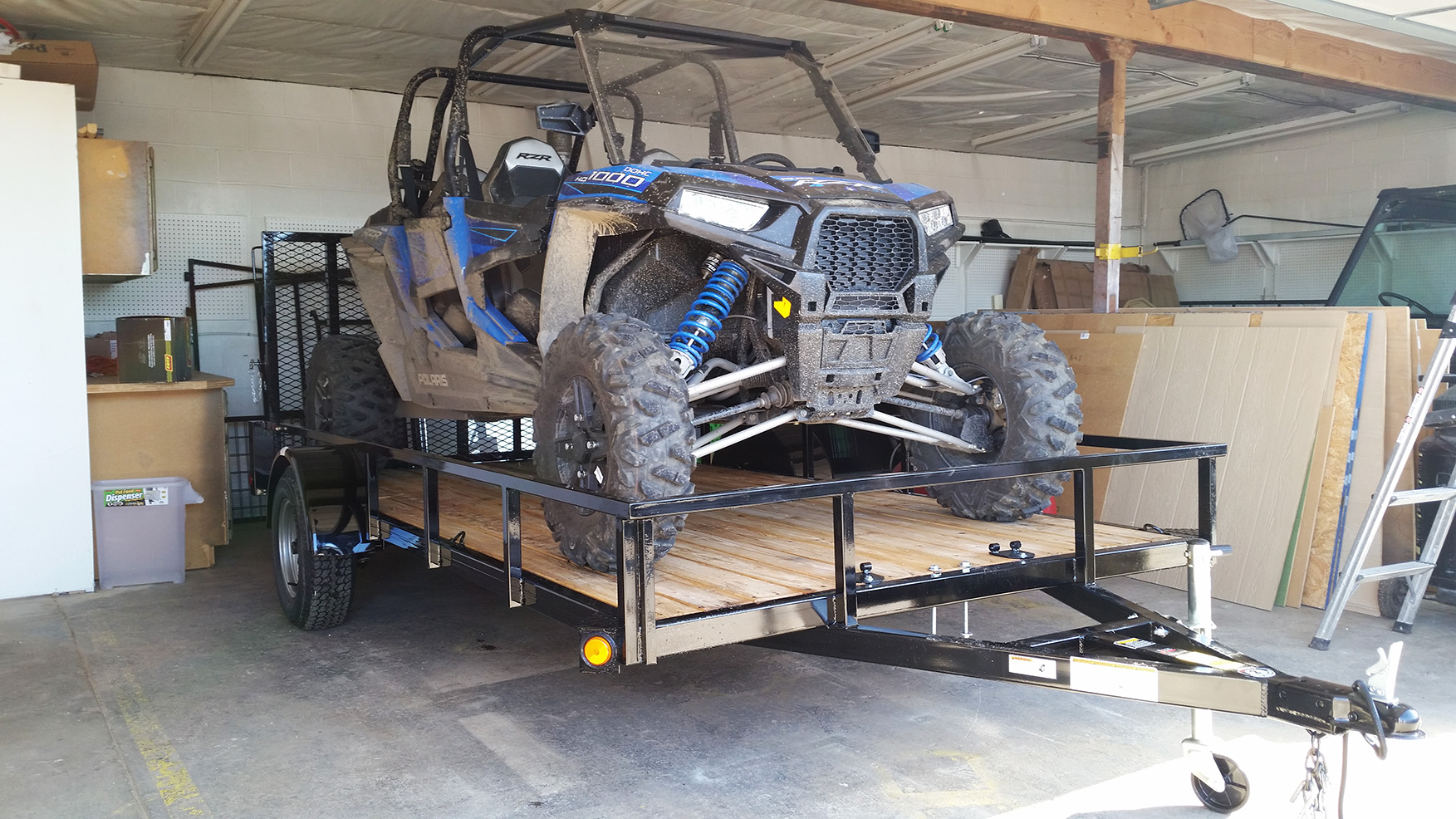

The 13' Advantage is a unique size for a trailer. It's big enough to fit the largest side-by-side/UTV on the market, but not so big as to take up extra room in the garage.  The 13' may be a good choice even if you have a 2 seat side-by-side. It provides extra room to carry gear and if you ever trade up for a larger recreational utility vehicle you don't have to buy a new trailer. This off road vehicle trailer is tough. It's made with box steel tubing and is powder coated for decades of service and can even be ordered with steel diamond plate flooring. Unless you really love fixing stuff, you will surely appreciate the standard greasable spindles that allow you to repack the bearings with just a few pumps from a grease gun. The swivel jack is sweet. It's fast and doesn't drag on the road when you drive through a dip. The wheel is always attached and allows for easy moving of the trailer by hand on a hard surface. The 13' Advantage trailer comes standard with mounting points for the retractable ratchet straps. So if you decide to add them later, they just pin on in a couple of minutes. And like all Echo UTV trailers the Advantage is compatible with all the Echo options such as tool boxes or a gas can rack, to name a few.




2" X 3" X 11 Ga. Steel Tube
Echo Trailers Compatable Machines
Spare tire link
Echo Trailers Reciver Hitch
Echo Trailers Undermount Box
Echo Trailers Gas Can Rack
Echo Two Inch Trailers Ratchet Straps
Echo Trailers XL Tool Box
1200Lbs. Swivel Jack
* Shown With Wood Deck
Model Number: EA-13-14
Echo Trailers Footer Bar
