Black Powdercoated

7' X 14'
5 0n 4 1/2
Four Flat
Recessed D.O.T. Sealed Lights
2"
None
216"
102"

32"
19.5"
84" X 170"
46" With Couplar
4 Leaf SW4B Spring
Tandem 3500lb Axles
Wood Plank Or Solid Metal Deck
1 Year
1 Year
SPECIFICATIONS
OPTIONAL FEATURES
  • Recessed Lights
  • Swivel Jack
  • Tie Down Loops
  • 3500 Lb Axle
  • Greasable Spindles
  • Tailgate
  • Lift Out Side Ramps
205/75D 14" Bias Ply
50 Lbs Pressure 95 Foot Lbs Lug
Model Number: ERA-14-14T
Echo Trailers Sliding Header
   Owners Manuel     Privacy Policy     Tongue Weight        Articles       Trailer Safety       Dealer Place      Deadly Mistakes       Ultimate Graphics       Brochures

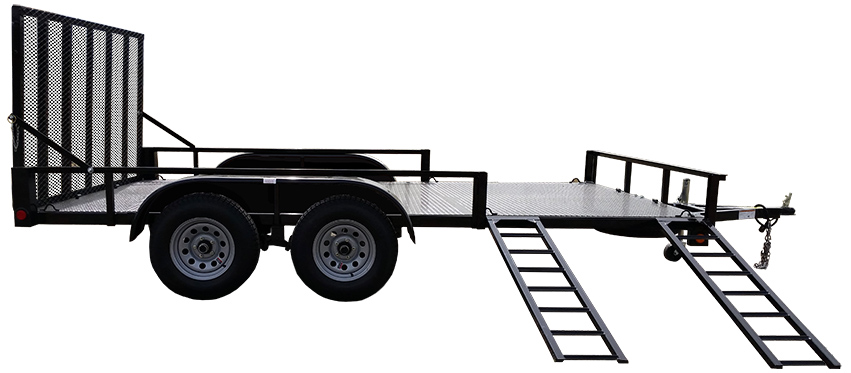

14' ECHO RAMP ADVANTAGE TANDEM AXLE TRAILER
14' Echo Advantage Trailer Schematic
219"
170"
46"
84"
102"
31"
19.5"
16.5"
17"
2" X 3" X 11 Ga. Steel Tube
Tailgate & Lift Out Side Ramps
6000 Lbs.
Echo Dealer Locator
Echo Trailers Compatable Machines
XL Toolbox with gas can rack
Echo Trailers Spare Tires
Echo Trailers Deluxe Road Side Kit
Echo Trailers Gas Rack & Cans
Echo Trailers L.E>D. Light
Echo Trailers 2
1200Lbs. Swivel Jack
* Shown With Metal Deck
Model Number: ERA-14-14T
The 14' Advantage is for those needing to transport an ATV and a UTV. This unique trailer has the capacity to hold an ATV sideways in front of a 2 seat side-by-side or to carry a 2 seat or even a 4 seat side-by-side- plus extra camping gear. The ATV ramps lift out of the side rail to allow access for loading an All Terrain Vehicle from the side. With the option of single axle or tandem axle, a wood or steel deck and any combination of unique Echo options; including electric brakes, the 14' Advantage can be tailored to fit your exacting needs. It comes with mounting points for the Echo Trailer Retractable Ratchet strap system. So all you have to do is insert a pin and clip and you're all set for quickly tying down your off highway vehicle. Of course the 14' has all of the great standard features of the Advantage lineup: like recessed lights that won't break,(so you don't  waste time working on trailer lights), a swivel jack that works quickly, an adjustable tail gate, greasable spindles, box steel construction and powder coating.
