Black Powdercoated
Tailgate Or Lift Out Side Ramps

7' X 17'
205/75d 14" Bias Ply
5 0n 4 1/2
Four Flat
Recessed D.O.T. Sealed Lights
2"
None
254"
102"

31"
19.5"
46" With Coupler
6000 Lbs.
1300 Lbs.
2200 Lbs.
4 Leaf SW4B Spring
Tandem 3500lb Axles
Wood Plank Or Solid Metal Deck
1 Year
1 Year
SPECIFICATIONS
OPTIONAL FEATURES
  • Recessed Lights
  • Swivel Jack
  • Tie Down Loops
  • 3500 Lb Axle
  • Greasable Spindles
  • Tailgate
  • Lift Out Side Ramps
50 Lbs Pressure 95 Foot Lbs Lug
Model Number: ERA-17-14T
Echo Trailers Sliding Header
   Owners Manuel     Privacy Policy     Tongue Weight        Articles       Trailer Safety       Dealer Place      Deadly Mistakes       Ultimate Graphics       Brochures

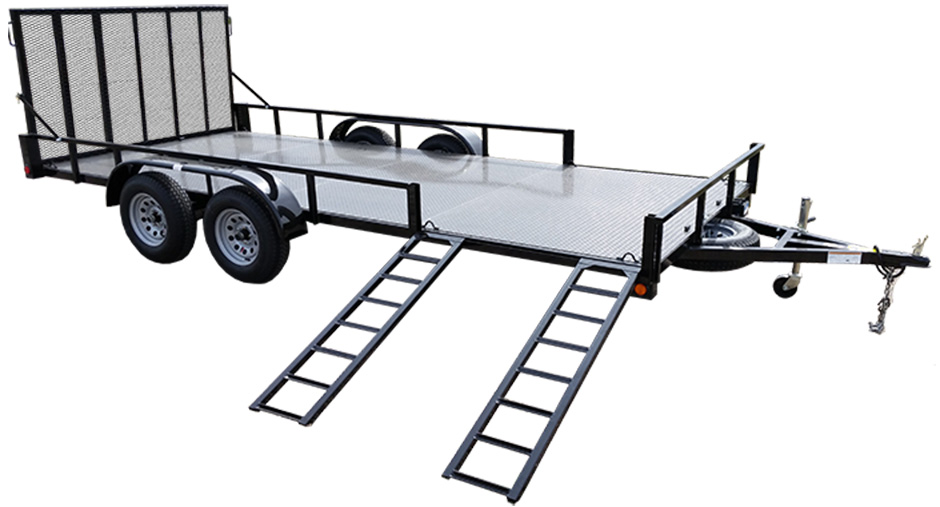

17' ECHO ADVANTAGE TANDEM AXLE TRAILER
17' Echo Advantage Tandem Trailer Schematic
255"
206"
46"
84"
102"
31"
19.5"
16.5"
17"
2" X 3" X .188 Ga. Steel Tube
84" X 206"
Echo Dealer Locator
Echo Trailers Compatable Machines
XL Toolbox with gas can rack
Echo Trailers Spare Tires
Echo Trailers Deluxe Road Side Kit
Echo Trailers Gas Rack & Cans
Echo Trailers L.E>D. Light
Echo Trailers 2
1200Lbs. Swivel Jack
* Shown With Metal Deck
Model Number: ERA-17-14T

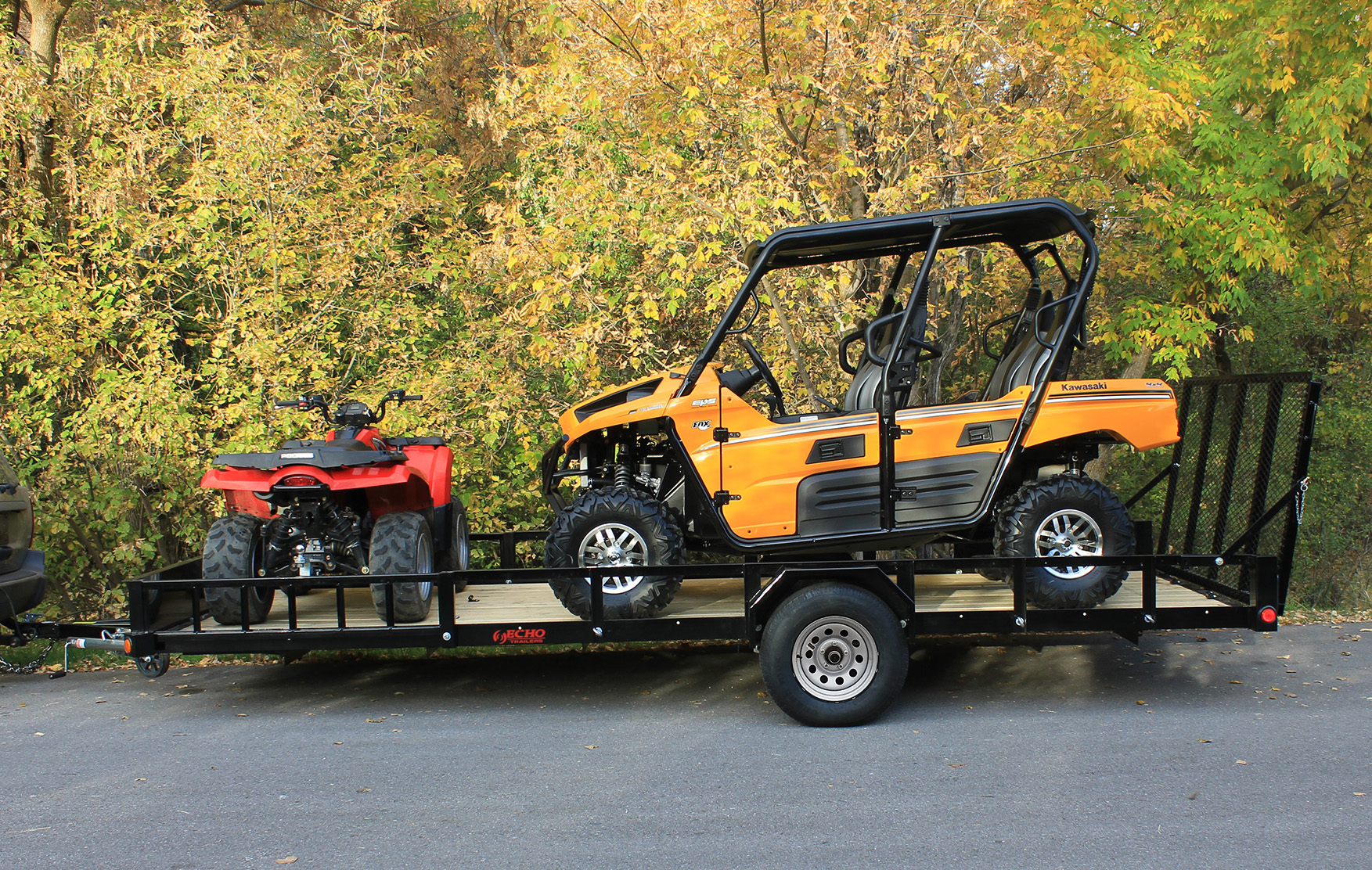

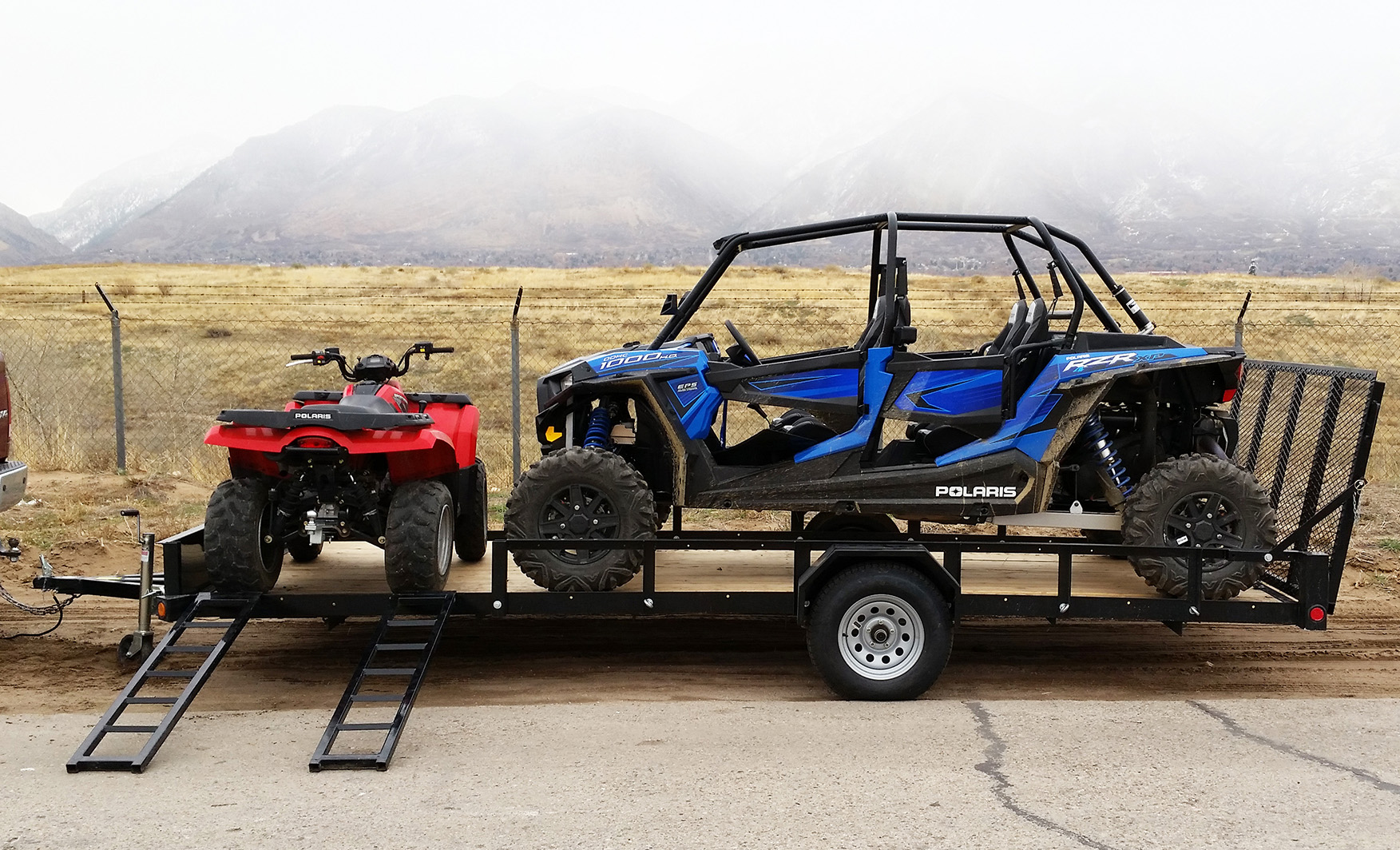

The 17' is a very unique size for a trailer. It's designed to carry an All Terrain Vehicle/ATV loaded sideways in front of a 4 seat Utility Vehicle/ UTV.  It's available with a wood deck or a steel diamond plate deck. The front side ramps, lift out of the railing system for loading and unloading an ATV from the side. The rear tail gate drops down to load the side by side. Standard features include recessed lights, swivel jack, adjustable tail gate, greasable spindles, box steel construction, powder coating, and mounting points for the Echo Trailer Retractable Ratchet straps. To add the optional straps all you have to do is insert a pin and clip and you will be ready to secure off road vehicles in just minutes.  Other options include a tongue mounted gas can rack that holds 2 five gallon gas cans, or a lockable tool box to store all your gear on the tongue and it also holds 1 five gallon gas can, LED lights, and a road side safety kit that has everything you need to change a trailer tire--a jack, lug wrench, gloves, reflectors, flashlight and more.
