  •     2,000 lb Capacity, 5-4.5 Bolt Circle
  •     Axle seats welded into axle
  •     1 3/4" diameter x 3/16" nominal wall round tubing
  •     Lubrication: Grease




2000 Lb Trailer Axle
Varies
Black
Steel Construction
Manufacturer Warranty
Varies To Trailer Model
Varies To Trailer Model
Varies To Trailer Model
Varies To Trailer Model
Easy Lube Spindles Standard
   Owners Manuel     Privacy Policy     Tongue Weight        Articles       Trailer Safety       Dealer Place      Deadly Mistakes       Ultimate Graphics       Brochures

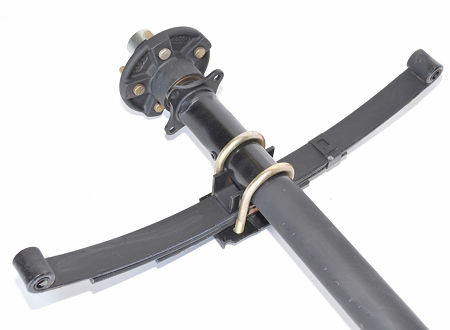

ECHO TRAILER 2000 AXLE SYSTEM

Features:
Flex to absorb road shock and provide smooth ride
Reduce wear and tear on trailer
Ensure level ride on bumpy and uneven surfaces
Mount to trailer frame with hangers or a hanger kit (sold separately)
Includes 4 round U-bolts, 2 U-bolt plates and hex nuts to attach axle to springs
Bushings come pre-installed in the spring
Springs seats sold separately



Specs:
Number of leaves per spring: 3
Spring width: 1-3/4"
Eye diameter: 9/16"
Spring capacity: 1,000 lbs
Axle capacity: 2,000 lbs
U-Bolt dimensions:
Length: 4-3/4"
Inside width: 1-7/8"
Spring dimensions: see table
Leaf springs are an integral part of your trailer suspension system. The double-eye spring is suspended at the ends by hangers that attach to its eye or, in the case of tandem-axle or triple-axle systems, into hangers in the front and rear and an equalizer or equalizers in the center. To determine the type of hangers or hanger kit you need, you must know the specific type of leaf spring you have, as well as your axle diameter and capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications.
