Echo Trailers Sliding Header
3500 lbs Axle Spindle
Model:ID-86010-R
5 on 4 1/2in. HUB 1750 lb. Capacity
Model: TL-63010-RK

  • Bolt Circle Pattern (in.) 4 1/2
  • Weight Capacity Each (lbs.)    1,750
  • Ship Weight    9.5 lbs
  • Spindle Size Dia. x L (in.) 1 3/8 x 1 1/16 tapered
  • Seal Size (in.) 1 23/32
  • Inner Bearing Size (in.)  1 3/8
  • Outer Bearing Size (in.)  1 1/16
5 on 4" 1/2" Lug Nut Studs
Model:  #WS12

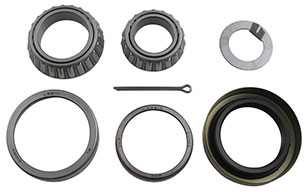

Complete Bearing Replacement Kit
Model: P# lti-43010-k
  • Max. Load Capacity  3500 lbs
  • Centre 24 1/2" Eye to End X 2" Wide
  • Number Of Leaves     4 pc
  • Width     1-3/4 in.
  • Eye Size     9/16 in.
  • 31.0 x 2.7 x 1.9 in.
  • Ship Weight  15.2 lbs
















Shackle Straps - 3" 1/8" Centers
Model: WW-70025-4

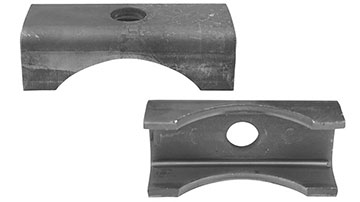

Trailer Axle Saddles
Model: 2000: 3-23  3500: 3-8
Shackle Straps - 2.25" Centers
Modle: TRSL275
  • Designed For 5 On 4' 1/2" Hube
  • Coated For Long Life
  • Knocek In Style
  • 1/2' X 1' 13/16'
  • Comes In Set Of 5
  • ShipWeight: 0.2 lbs
Trailer Slipper Hanger
Model:  # MR2020R
  • Race provides smooth surface
  • bearing to roll on inside of trailer hub
  • Works with L44643 and L44649 bearings
  • Outer diameter: 1.980"
  • Matching bearings (sold separately): L44643, L44649

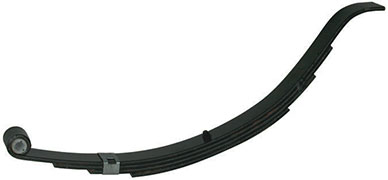

2000lb 4 Leaf Slipper Top Spring
Model: BT25-9
2000lb Axle Bearing Small
Model: L44643

  • Weight Rating 1,875lbs
  • Outside Bearing: 1 1/16"
  • Inside Bearing: 1 3/8"
  • Easy To Use Grease Zerk
  • Included: (1) Spindle (1) Castle Nut (1) Washer
          (1) L-Pin (1) Grease Zerk

  • 9/16 Inch Diameter
  • Bushing Installed
  • For 1-3/4 Inch Wide Spring
  • For Double Eye Springs
  • Single Axle
  • Ship Weight 0.3lbs
      Kit includes
  • One inner bearing and race
  • One outer bearing and race
  • Grease seal
  • Cotter pin - for standard spindle applications
  • Tang washer - for EZ-Lube spindle applications
3500lb Axle Bearing Large
Model: L44649
Front Trailer Axle Hanger W/ Straps
Model: 153KA2-A
1 " 3/4" Rear Hanger with Bushing
Model: 153KA2-R
  • Leaf Spring Hanger
  • 2000-3500 lb Max Capcity
  • Used With Leaf Springs
  • Spring Size 1-3/4 in.
  • 6.2 x 4.3 x 4.5 in.
  • Height: 1-3/16"Ship Weight 6.7 lbs (Pair)
  • Ship Weight 6.7 lbs (Pair)
  • Stainless steel frame
  • Capacity: 12 V
  • Optic-free lens
  • 15" lead wire
  • Diodes: 9
  • PC plastic housing
  • Color: red


Complete Tandem Axle Hanger Kit
Model: AP233

  • allows for the necessary pivot of the springs.
  • Link connects double-eye spring to rear hanger
  • Connection Allows Movement to take place
  • Length: 3-1/8" from center of hole to center of hole
  • Dimensions: 4-3/8" long x 1-1/4" wide
  • Bolt hole diameter: 9/16"
  • Ship Weight 0.5 lbs
  • Attaches 4 leaf springs
  • Achieves 4-1/2" or 5" clearance
  • Includes:
  • (2) 5-5/8" Long curved equalizers (13-104-2)
  • 9/16" Diameter center and end holes
  • (8) 2-1/4" Long shackle straps (18-11)
  • (14) 3" Long x 9/16" diameter shackle bolts (9163B)
  • (14) 9/16" Diameter locknuts (916DLN)
  • Designed for trailers with tandem, 2,000-lb to 7,000-lb axles
  • Does not include components for mounting axle to springs
  • Welds onto round, 3-1/2" diameter axle
  • Sits on top of 1-3/4" or 2" wide spring
  • Cutout on flat side of seat surround
  • Raised knob on leaf spring to prevent turning or shifting
  • Provides extra support and secure positioning for trailer axle
  • Please note: 2 spring seats are required for each axle
  • Tapered For High-Speed Use
  • Inner diameter: 1.063"
  • Matching race (sold separately): L44610
  • Inner/outer bearing for BTR spindle
  • Outer bearing for #84 spindle

Complete Single Axle Hanger Kit
Model: CL-46011-A
  • 3-1/4" tall front hangers
  • 7/8" tall rear hangers
  • Mounts Springs  2,000-lb to 7,000-lb
  • Single-axle trailer frame
  • For 1-3/4 Inch Wide Spring



Race for L44643 and L44649 Bearings
Model: L44610
  • High-quality, tapered roller bearing
  • Designed for high-speed use
  • Inner diameter: 1.000"
  • Matching race (sold separately): L44610
  • Application: inner/outer bearing for BT8 spindle

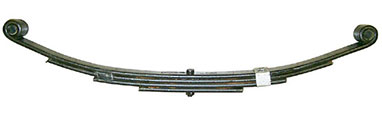

3500 lb AWS4 Bottom Springs
Model: AWS4
  • Max. Load Capacity  3500 lbs
  • Centre 26" Eye to Eye X 2" Wide
  • Number Of Leaves     4 pc
  • Width     1-3/4 in.
  • Eye Size     9/16 in.
  • 31.0 x 2.7 x 1.9 in.
  • Ship Weight  15.2 lbs


3500 lb SWB4 Top/Bottom Springs
Model: SWB4
  • Max. Load Capacity  2000 lbs
  • Centre 25 1/2" X  Eye to Eye X 2" Wide
  • Number Of Leaves     4 pc
  • Width     1-3/4 in.
  • Eye Size     9/16 in.
  • 31.0 x 2.7 x 1.9 in.
  • Ship Weight  15.2 lbs


  • Front weld on
  • Leaf Spring Hanger
  • 1 3/4" wide spring
  • Steel Constuction
  • Used With 4 Leaf Slipper
  • Top BT25-9
  • Ship Weight 0.2 lbs
